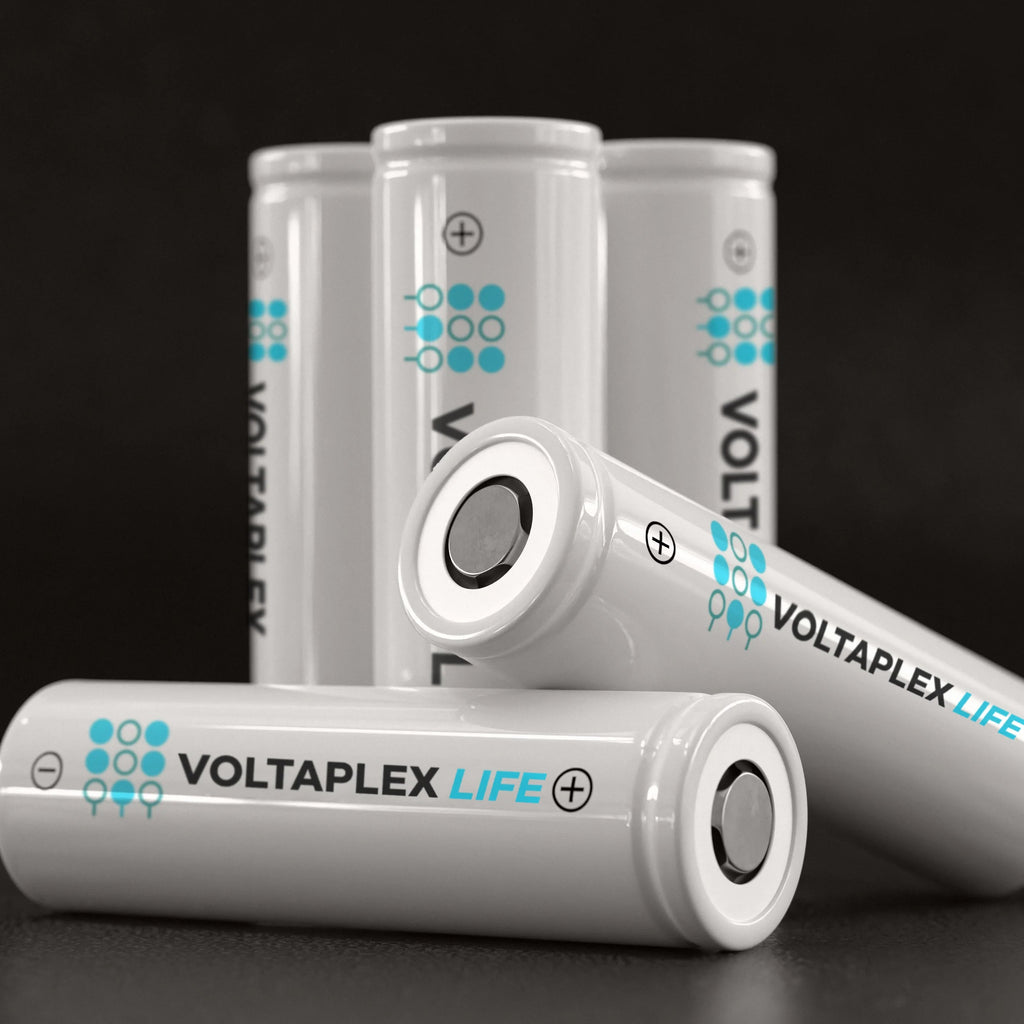

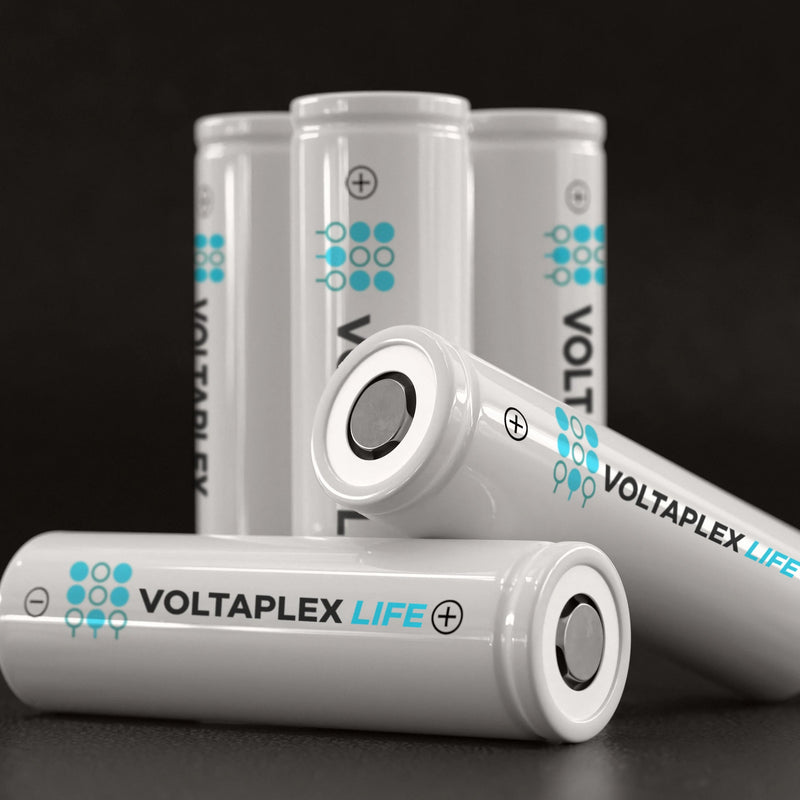

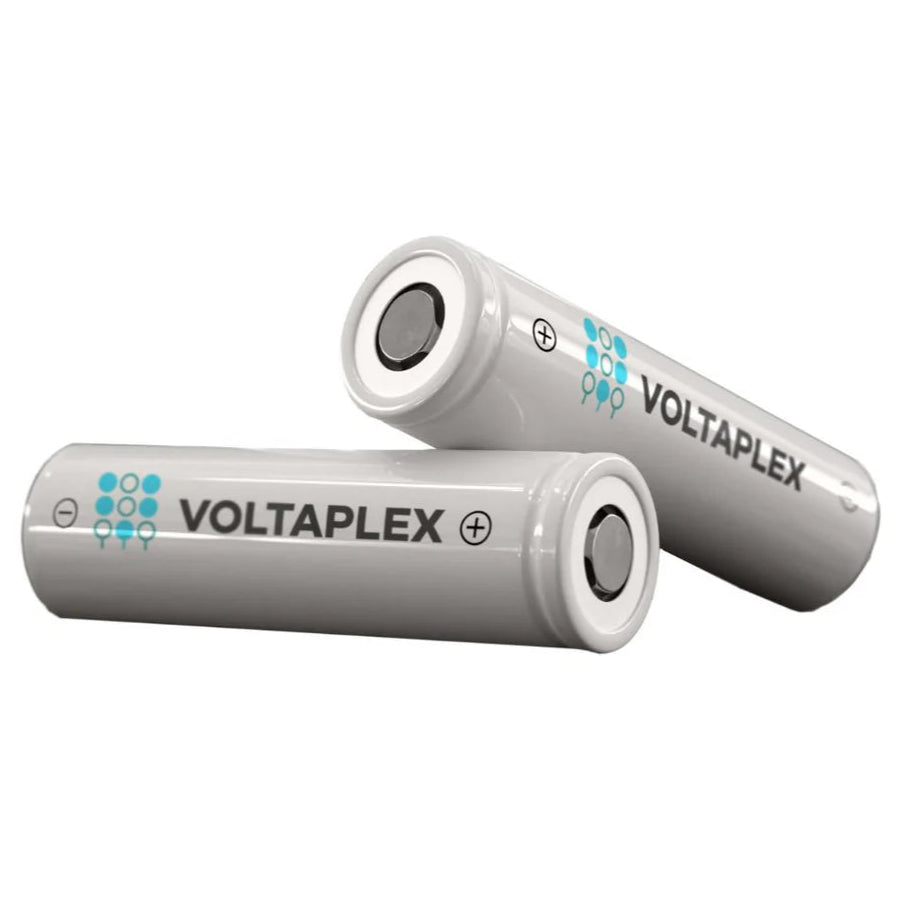

New Voltaplex LIFE 18650!
Discover the future of cycle life with our latest 18650 cell, featuring the innovative Dreamweaver Separator. Designed to meet the demands of modern applications, this cell delivers:
- Fast Charging Capability: Optimized for rapid energy absorption, minimizing downtime and keeping your devices powered when you need them most.
- Enhanced Cycle Life: With a significantly longer lifecycle, our Voltaplex Life 18650 cells reduce replacement frequency, saving time and cost over the long run.
- Exceptional Thermal Stability: Engineered for superior thermal resistance, ensuring safe and reliable performance under extreme conditions.
|

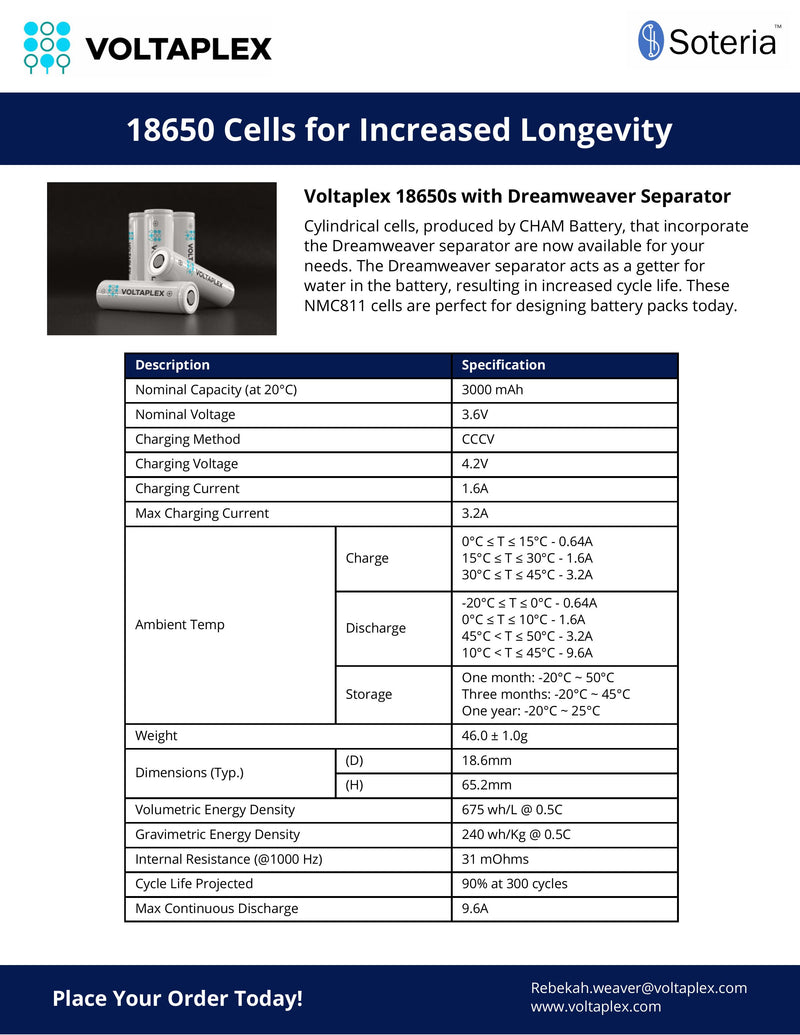

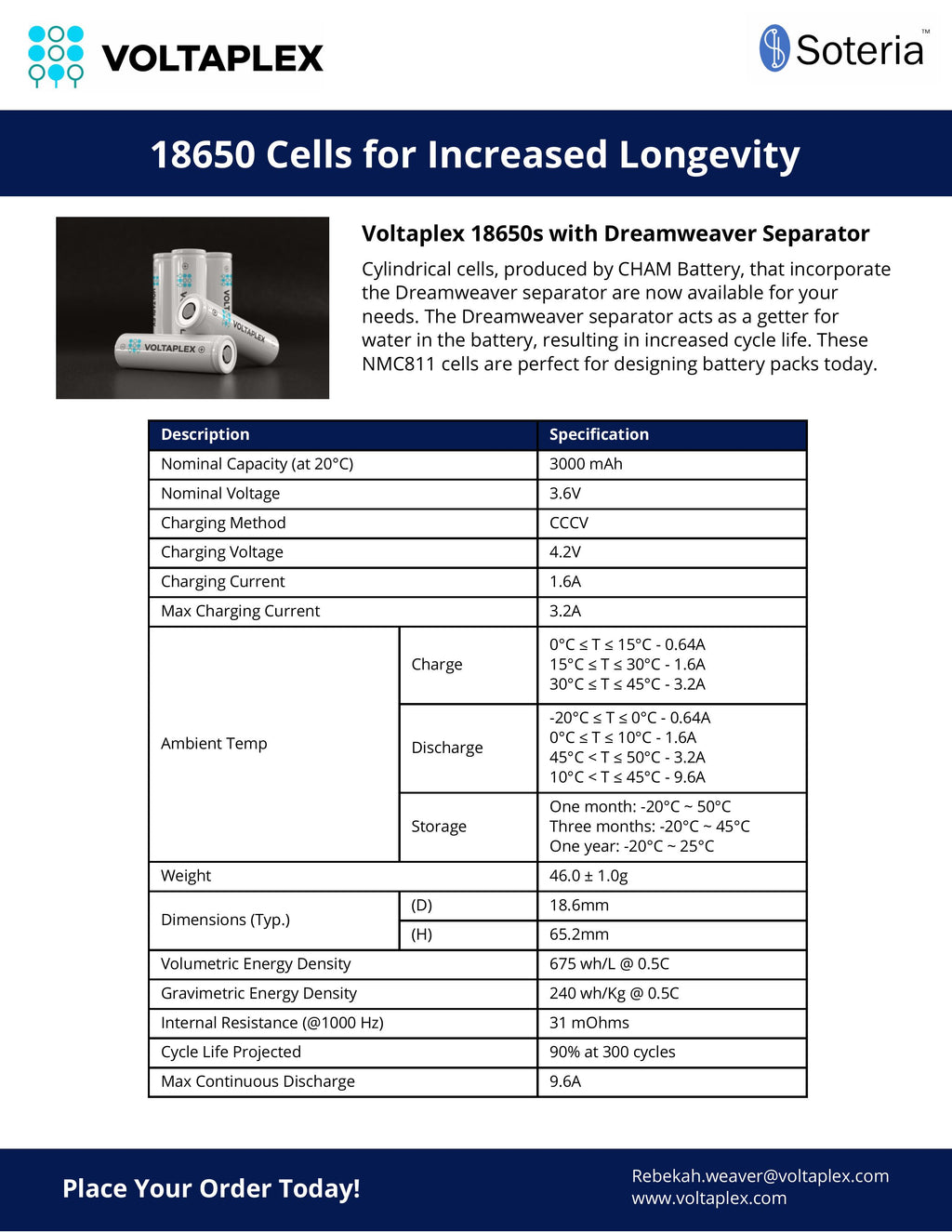

Description |
Specification |
|
|
Nominal Capacity (at 20°C) |
3000 mAh |
|
|
Nominal Voltage |
3.6V |
|
|
Charging Method |
CCCV |
|
|
Charging Voltage |
4.2V |
|
|
Charging Current |
1.6A |
|
|
Max Charging Current |
3.2A |
|
|
Ambient Temp |
Charge |
0°C ≤ T ≤ 15°C - 0.64A 15°C ≤ T ≤ 30°C - 1.6A 30°C ≤ T ≤ 45°C - 3.2A |
|
Discharge |
-20°C ≤ T ≤ 0°C - 0.64A 0°C ≤ T ≤ 10°C - 1.6A 45°C < T ≤ 50°C - 3.2A 10°C < T ≤ 45°C - 9.6A |
|
|
Storage |
One month: -20°C ~ 50°C Three months: -20°C ~ 45°C One year: -20°C ~ 25°C |
|
|
Weight |
46.0 ± 1.0g |
|
|
Dimensions (Typ.) |
(D) |
18.6mm |
|
(H) |
65.2mm |
|
|
Volumetric Energy Density |
675 wh/L @ 0.5C |
|
|
Gravimetric Energy Density |
240 wh/Kg @ 0.5C |
|
|
Internal Resistance (@1000 Hz) |
31 mOhms |
|
|
Cycle Life Projected |
90% at 300 cycles |
|
|
Max Continuous Discharge |
9.6A |
|
Product Description
If you would like to learn more about how the Voltaplex LIFE 18650 and how it maximizes performance and extended battery life click here.
Voltaplex values long-term relationships with clients and encourage our clients to performance test cells against official manufacturer specification sheets.
In Asia, 18650 batteries are binned by quality into A, B, and lower bins. C-bin batteries are often recycled from battery packs. Lower bin batteries will underperform and may be dangerous.
We will only provide A Grade cells, unless specifically required to otherwise, for example, some clients may prefer Grade B Chinese cells for low-cost ESS projects. We can also confirm batch-date code, run testing (like impedance/voltage/capacity), and handle other IQC requirements.
Product Details
Voltaplex LIFE 18650 is a cylindrical cell, produced by CHAM Battery, that incorporates the Dreamweaver separator is now available for your needs. The Dreamweaver separator acts as a getter for water in the battery, resulting in increased cycle life. These NMC811 cells are perfect for designing battery packs.
Our Company
Ttek Assemblies, Inc (TtekAI) is a battery assembler and distributor. We provide a wide variety of custom batteries and battery packs. Our batteries service a diverse range of applications and industry requirements including medical, military, test & measurement, portable electronics, and more. based on customer specifications.
Value Added Services
If you are looking for a custom Voltaplex LIFE 18650 battery pack, please fill out our Custom Battery Quote Form.
