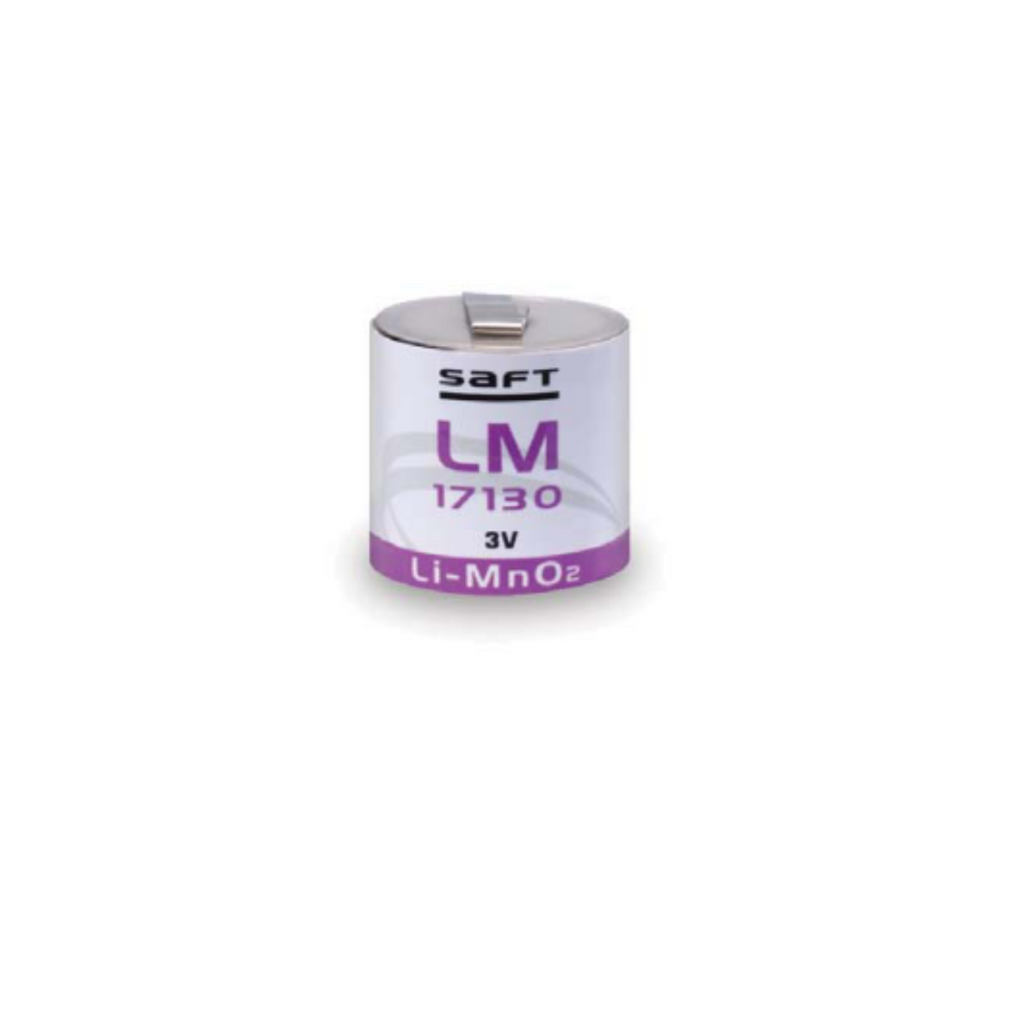

Saft LM 17130 Lithium Battery 1/3 A-size .5 Ah 3.0 V Li-MnO2 Cylindrical Cell

When you shop with us and buy Saft LM 17130, purchases can be returned within 30 days after placing your order.

Lithium Battery Information Sheet

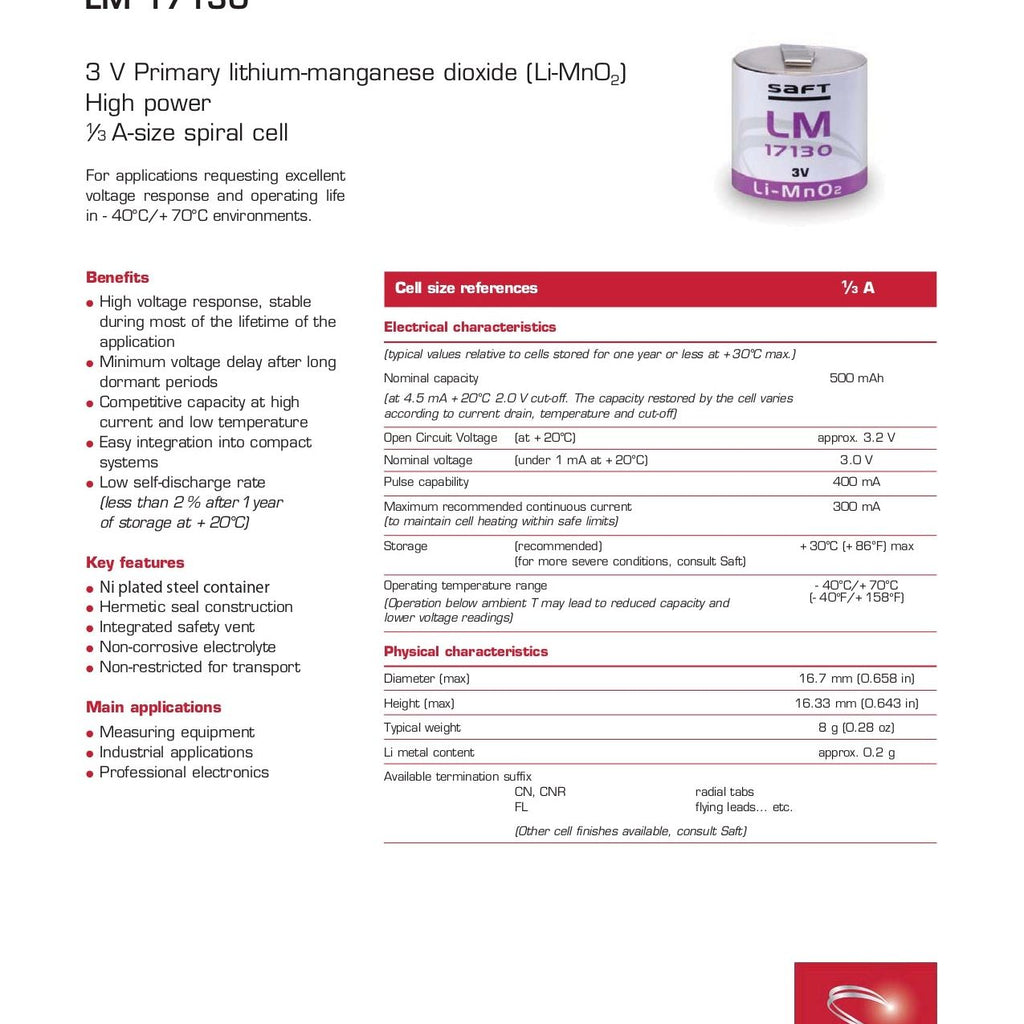

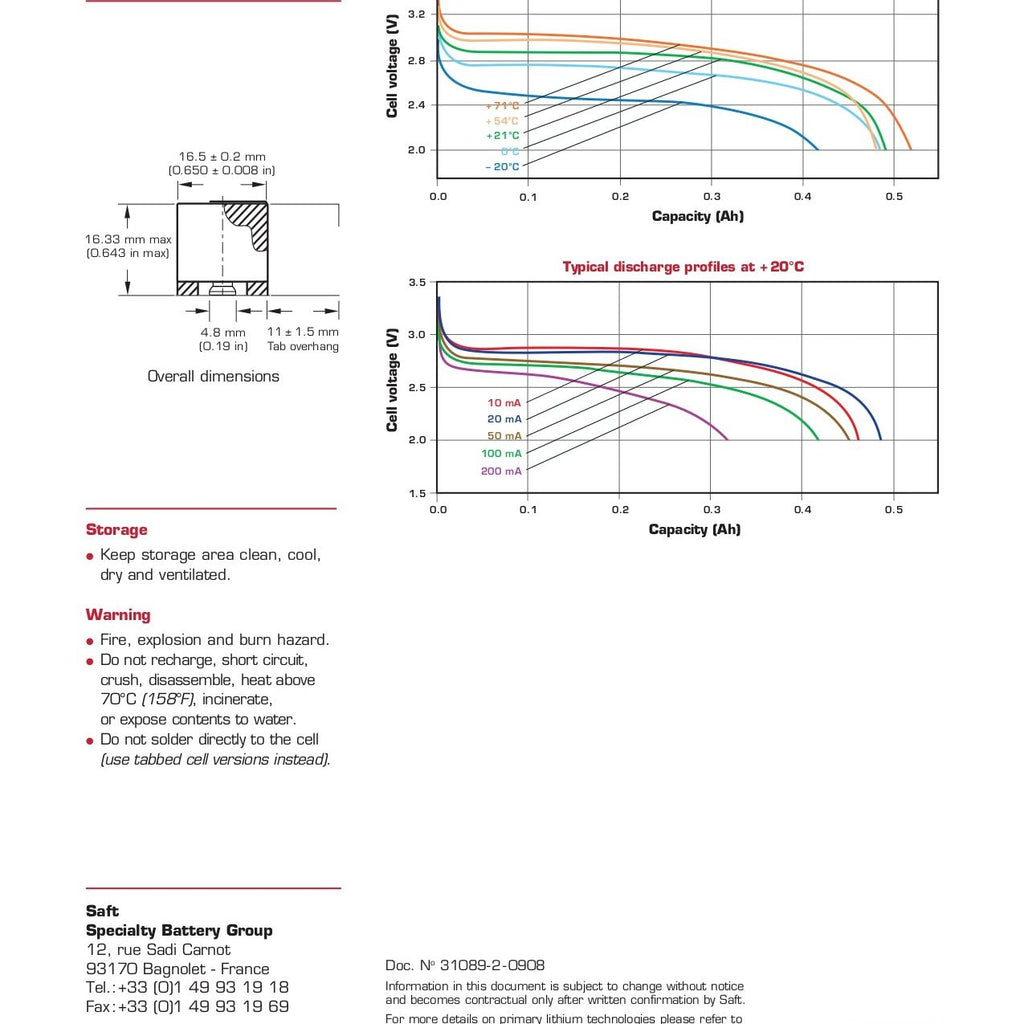

Saft LM 17130 Spec Sheet

Buy Other Saft Products

Product Overview

The Saft LM 17130 is a compact, high‑reliability Lithium Manganese Dioxide (Li‑MnO₂) primary cell engineered for long‑life, moderate‑drain industrial applications where space is limited but dependable performance is essential. With its 3.0V nominal output, strong pulse capability, and rugged construction, the LM 17130 is widely used in IoT sensors, metering, defense electronics, medical devices, and tracking systems that require stable, maintenance‑free power over many years.

Li‑MnO₂ Chemistry and Its Performance Advantages

The LM 17130 uses Li‑MnO₂ chemistry, which provides a performance profile optimized for devices that need both long‑term energy and intermittent high‑current bursts. This chemistry offers:

• High pulse capability without external capacitors

• Stable 3.0V output across most of the discharge curve

• Excellent intrinsic safety due to the stable Li‑MnO₂ system

• Good performance at moderate to high discharge rates

• Wide operating temperature range, typically −40°C to +70°C

• Low self‑discharge for multi‑year deployments

This makes the LM 17130 ideal for compact devices that must operate reliably in remote, sealed, or harsh environments.

Key Performance Characteristics

The Saft LM 17130 delivers a strong balance of energy density, pulse performance, and environmental durability:

• High capacity in a compact cylindrical format

• Reliable pulse performance for RF transmissions, sensing, and telemetry

• Hermetically sealed construction for leak‑proof reliability

• Non‑pressurized, non‑flammable design for enhanced safety

• Long shelf life with minimal voltage drop during storage

This combination supports both continuous low‑drain operation and periodic high‑drain events without compromising longevity.

Common Applications for the Saft LM 17130

The LM 17130 is widely used across industries requiring long‑term, maintenance‑free power in compact devices:

• Utility metering (AMR/AMI)

• Industrial IoT sensors and wireless modules

• Defense and aerospace electronics

• Medical and diagnostic equipment

• Asset tracking and geolocation systems

• Security and intrusion detection devices

• Automotive telematics and embedded systems

• Environmental and agricultural monitoring networks

These applications benefit from the LM 17130’s ability to deliver stable voltage and dependable pulse performance over long operational lifetimes.

Why Engineers and OEMs Choose the LM 17130

• High pulse capability for RF and sensor‑driven workloads

• Stable 3.0V output for sensitive electronics

• Low self‑discharge for long‑term storage and deployment

• Wide temperature tolerance for harsh industrial environments

• Proven reliability in mission‑critical systems

• Maintenance‑free operation for sealed or remote devices

The LM 17130 is often selected when designers need a compact, safe, and pulse‑capable Li‑MnO₂ power source that can operate for years without maintenance.

Product Description

Saft LM 17130 is a Primary Lithium-Manganese Dioxide (Li-MnO2) cylindrical cell and is ideally suited for measuring equipment, industrial applications and professional electronics.

Product Details

LM 17130 is a 3.0 V Primary Lithium-Manganese Dioxide (Li-MnO2) Cylindrical Cell that has high voltage response, minimum voltage delay after a long dormancy, spiral construction as well as hermetic glass-to-metal-sealing.

Product Specifications
