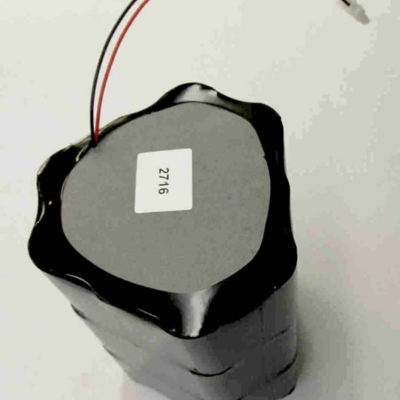

The TRDI Sentinel V battery has a plastic window exposes an LED that tells you the results of the battery’s self-test.
|
Battery Part Number: |
TLP-83182/D/V3 |
|
Model: |
TRDI Sentinel V battery |
|
Voltage: |
35 V |
|
Nominal Capacity: |
1900 Wh; 6.85 MJ |
|
HLC capacity: |
24 kJ |
|
Chemistry: |
Lithium-Thionyl Chloride |
| Primary Cells: | 32 TL-6930 "D" cells |
Lithium Battery Information Sheet
Product Description
The Doppler TLP-83182/D/V3 lithium battery pack powers oceanographic instruments for long deployments. This battery lasts three times as long as alkaline batteries, and, it also outlasts other lithium battery technologies. Doppler designs battery packs in collaboration with Tadiran Batteries, in Israel. The battery pack is manufactured in the USA by Ttek Assemblies, Inc.
Product Details
Th TLP-83182/D/V3 battery is a Lithium Primary Lithium-Thionyl Chloride (Li-SOCl2) battery and is based on a Tadiran Pulses Plus design. This battery has fast voltage recovery after long term storage and/or usage, high energy density, low self-discharge rate, bobbin construction, hermetic glass-to-metal-sealing, and non-flammable electrolyte.
Product Specifications
- Part Number: TLP-83182/D/V3
- Voltage (V): 35 V (Nominal)
- Capacity (Ah): 1900 Wh; 6.85 MJ (Nominal)
- HLC capacity: 24 kJ
- Temperature Range (°C): -55° to +85°
- Primary cells: 32 TL-6930 "D" cells
- Dimensions (length x diameter): 195 mm x 138 mm
- Weight: 3.3 kg
- Lithium Content: 160 g
- Safety circuit: Yes
- Shipping: UN3090 in cardboard box, UN3091 in instrument
- Primary Type: Non-Rechargeable
- Made in: USA
- Chemistry: Lithium Thionyl Chloride
